Water ripple stainless steel sheets are decorative metal sheets with a three-dimensional ripple pattern pressed or formed on the stainless steel surface. The uneven surface changes the way light is reflected, making the material suitable for feature walls, ceilings, elevator interiors, facades, furniture and other architectural applications.
For a project, however, appearance is only one part of the decision. Material grade, sheet thickness, width, length, surface finish, color and installation method all affect the final result.
This guide provides the main specifications used for water ripple stainless steel sheets and explains how to select the right option for different applications.
Water Ripple Stainless Steel Sheets Specifications
The available specifications depend on the manufacturer and production process. ColorMetal’s current water ripple stainless steel sheets range includes the following options:
| Specification | Available Options |
|---|---|
| Material | SUS304, SUS316L and other stainless steel grades |
| Thickness | 0.6–2.0 mm |
| Width | 1000, 1220, 1250, 1500 mm |
| Maximum Length | Up to 5500 mm |
| Tolerance | ±5% |
| Colors | 18+ color options |
| Common Finishes | Silver, PVD colors and customized surface effects |
| Applications | Walls, ceilings, facades, interiors and furniture |
These specifications make the material suitable for both small decorative panels and larger architectural surfaces. For large projects, customized dimensions can help reduce the number of joints during installation.
What Stainless Steel Grade Should Be Used?
The stainless steel grade is one of the first specifications to confirm before ordering.
SUS304 Water Ripple Stainless Steel
SUS304 is widely used for decorative architectural applications. It provides good corrosion resistance and is suitable for many interior projects.
Typical applications include:
- Hotel interiors
- Restaurant decoration
- Commercial walls
- Elevator interiors
- Retail stores
- Decorative ceilings
- Furniture panels
For most standard indoor decorative projects, 304 stainless steel provides a practical balance between material performance and cost.
SUS316L Water Ripple Stainless Steel Sheets
SUS316L is normally selected when the project requires higher corrosion resistance.
It can be considered for areas exposed to higher humidity, coastal environments or more demanding service conditions.
Typical applications include:
- Coastal buildings
- High-humidity interiors
- Premium architectural projects
- Exterior decorative elements
- Projects requiring higher corrosion resistance
The correct grade should be selected according to the actual installation environment rather than simply choosing the highest specification.
What Thickness Is Available?
Water ripple stainless steel sheets are available in approximately 0.6 mm to 2.0 mm thickness from the current ColorMetal product range.
Thickness selection depends on the application.
For example, decorative ceiling panels may require a different thickness from large wall panels. Furniture components, elevator panels and architectural cladding may also have different requirements based on panel size and supporting structure.
A simple approach is:
Smaller decorative panels → lighter thickness can be considered
Larger panels → greater attention to rigidity and supporting structure
Wall cladding → select thickness according to panel dimensions and installation method
Ceiling applications → consider both panel weight and supporting structure
The final thickness should be confirmed together with the panel size, installation method and project requirements.
What Sizes Are Available?
Width is another important specification when purchasing water ripple stainless steel sheets.
ColorMetal lists standard width options of:
- 1000 mm
- 1220 mm
- 1250 mm
- 1500 mm
The maximum listed length is 5500 mm.
Large-format sheets can be useful for architectural applications because fewer joints may be required.
For example, if a wall requires a large continuous decorative surface, using a longer sheet can reduce the number of horizontal joints. This can create a cleaner appearance and simplify the overall design.
However, larger panels also require proper handling, transportation and installation planning.
Water Ripple Stainless Steel Sheets Colors
Water ripple stainless steel is not limited to the natural silver color.
ColorMetal lists 18+ color options, including:
- Silver
- Gold
- Rose Gold
- Champagne
- Copper
- Bronze
- Black
- Blue
Additional colors can also be discussed according to project requirements.
Color selection can significantly change the appearance of the ripple pattern.
A silver water ripple sheet creates a bright and reflective appearance. Gold and champagne can be used for luxury interiors, while black and bronze can provide a darker architectural appearance.
Water Ripple Pattern Options
The size and appearance of the ripple pattern should also be considered.
Different projects may require different levels of surface movement. Common descriptions include:
- Small water ripple
- Medium water ripple
- Large water ripple
- Deep water ripple
- Customized ripple patterns
A smaller ripple can provide a relatively subtle texture, while a larger or deeper ripple produces a stronger three-dimensional effect.
For a large ceiling or feature wall, it is recommended to confirm the actual sample before mass production because the appearance of a ripple pattern can change significantly under different lighting conditions.
Water Ripple Stainless Steel Sheets for Walls
Wall cladding is one of the most common applications.
A standard flat stainless steel panel produces a relatively uniform reflection. A ripple surface creates multiple reflection angles across the same panel.
This is particularly useful for:
- Hotel lobby walls
- Restaurant feature walls
- Shopping mall interiors
- Reception areas
- Retail stores
- Elevator walls
- Residential feature walls
For wall applications, the direction of the ripple pattern should be confirmed before installation.
If multiple panels are installed together, inconsistent orientation can make the finished surface look uneven.

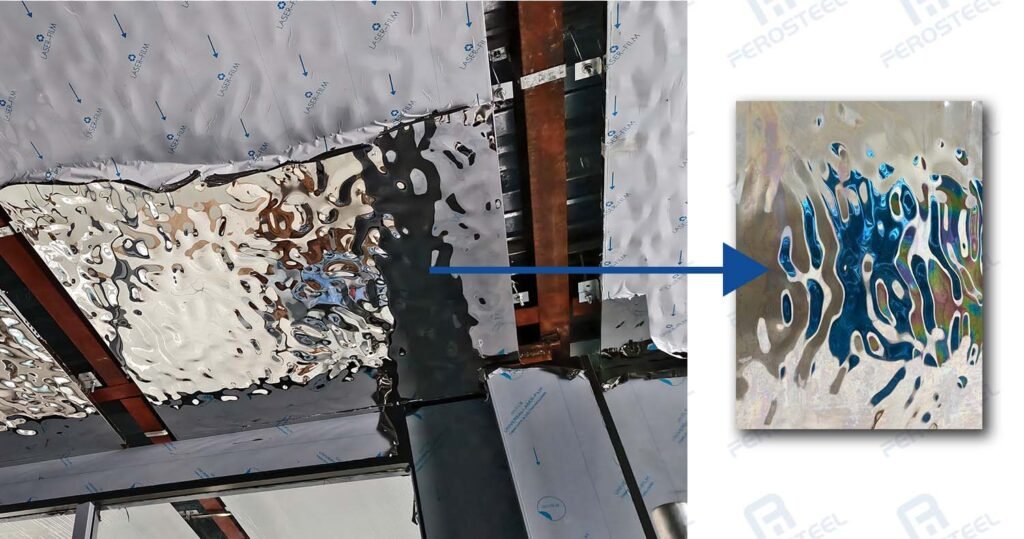

Water Ripple Stainless Steel Sheets Ceiling
Ceiling applications require additional attention because the panels are installed overhead.
Water ripple stainless steel can be used for:
- Hotel lobby ceilings
- Restaurant ceilings
- Commercial interiors
- Retail spaces
- Luxury residential interiors
- Decorative architectural ceilings
Lighting is particularly important.
Spotlights, LED strips and downlights can produce different reflection effects on the ripple surface. Therefore, designers should consider the relationship between the ripple direction, panel layout and lighting position during the design stage.
For overhead applications, the supporting structure and safety requirements should be confirmed before installation.
Water Ripple Stainless Steel Sheets for Elevator Interiors
Elevator interiors are another suitable application.
Elevator cabins have relatively limited surface areas, so decorative stainless steel can create a noticeable visual effect without requiring a large quantity of material.
Water ripple panels can be combined with:
- Gold PVD
- Rose gold PVD
- Black PVD
- Bronze
- Mirror finish
- Brushed finish
The final combination depends on the design requirements of the elevator cabin.
How Is Water Ripple Stainless Steel Sheets Installed?
For wall applications, structural adhesive installation is one option when the substrate and project conditions are suitable.
The basic process includes four steps.
Step 1: Prepare the Surface
The wall should be solid, flat, dry and clean.
Dust, oil and loose materials should be removed before installation.
Step 2: Clean and Position the Panel
The back surface of the stainless steel sheet should be cleaned before applying adhesive.
Reference lines should be marked according to the final layout.
The ripple direction should also be checked before fixing the panel.
Step 3: Apply Structural Adhesive
Structural adhesive can be applied to the back of the sheet using an appropriate dot or strip pattern.
The adhesive distribution should be planned according to the panel size and substrate conditions.
Step 4: Alignment and Curing
After installation, check panel alignment and joint spacing.
Temporary supports may be required depending on the application.
ColorMetal’s installation guidance indicates a typical adhesive curing period of 24–48 hours, depending on the adhesive and installation conditions.
For ceiling installations, additional temporary supports or mechanical fixtures may be required during curing.
How Much Does Water Ripple Stainless Steel Sheets Cost?
There is no single price for water ripple stainless steel sheets because several specifications affect the final quotation.
The main factors include:
- Stainless steel grade
- Thickness
- Sheet size
- Ripple pattern
- Surface finish
- PVD color
- Order quantity
- Packaging
- Processing requirements
- Shipping destination
For example, a 304 silver ripple sheet and a 316L PVD-colored ripple sheet may have significantly different costs.
For an accurate quotation, buyers should provide the required material grade, thickness, size, color, quantity and destination.
What Should Buyers Confirm Before Ordering?
Before placing an order, it is useful to prepare a complete specification sheet.
At minimum, confirm:
Material: SUS304 or SUS316L
Thickness: 0.6–2.0 mm or project-specific requirement
Width: 1000 / 1220 / 1250 / 1500 mm or custom
Length: up to 5500 mm or custom
Color: Silver, Gold, Rose Gold, Champagne, Copper, Bronze, Black, Blue or custom
Ripple: Small, Medium, Large, Deep or custom
Quantity: Number of sheets or total square meters
Application: Wall, ceiling, elevator, facade, furniture or other use
Installation: Adhesive, mechanical fixing or other system
Providing these specifications at the quotation stage allows the manufacturer to calculate material requirements and production costs more accurately.
How to Check Water Ripple Stainless Steel Sheets Quality?
A sample inspection is recommended before a large order.
The following points should be checked:
1. Surface
Check for scratches, dents, stains and other visible defects.
2. Ripple Consistency
Compare several areas of the sample to determine whether the ripple pattern is consistent.
3. Color
For PVD-colored sheets, compare the production sample with the approved color sample under the lighting conditions used for the project.
4. Dimensions
Check sheet length, width and thickness against the agreed specifications.
5. Protective Film
The protective film should provide sufficient protection during processing, packing and transportation.
ColorMetal specifies a 100-micron transparent protective film for its water ripple stainless steel products, using a rubber membrane designed to avoid adhesive residue after stamping.
Water Ripple Stainless Steel Sheets vs. Flat Stainless Steel
The biggest difference is the surface.
Flat stainless steel provides a clean and uniform appearance.
Water ripple stainless steel introduces a three-dimensional texture that changes the reflection of light.
| Item | Water Ripple Stainless Steel | Flat Stainless Steel |
| Surface | Rippled / textured | Flat |
| Reflection | Multiple reflection angles | More uniform |
| Visual effect | Dynamic | Clean and simple |
| Typical use | Feature surfaces | General cladding |
| Design impact | High | Moderate |
| Color options | Multiple | Multiple |
| Customization | High | High |
For projects where the metal surface itself needs to become a design feature, water ripple stainless steel provides an additional visual element.
Frequently Asked Questions
What is water ripple stainless steel Sheets?
Water ripple stainless steel is stainless steel sheet with a three-dimensional ripple pattern formed on the surface. The texture changes the reflection of light and creates a flowing visual effect.
What grades are available?
Common options include SUS304 and SUS316L. The current ColorMetal product page lists both grades.
What thickness is available?
The listed thickness range is 0.6–2.0 mm, with custom requirements available for discussion.
What is the maximum sheet length?
The current product specification lists a maximum length of 5500 mm.
What widths are available?
Listed widths include 1000 mm, 1220 mm, 1250 mm and 1500 mm.
How many colors are available?
ColorMetal lists 18+ color options, including silver, gold, rose gold, champagne, copper, bronze, black and blue.
Can water ripple stainless steel sheets be used on ceilings?
Yes. Water ripple stainless steel is used for decorative ceilings, but the supporting structure, panel weight, installation method and overhead safety requirements should be evaluated before installation.
Can the size be customized?
Yes. Size, thickness, color and ripple pattern can be discussed according to project requirements.
Is 304 or 316L better?
For many indoor projects, 304 is a practical choice. For higher-humidity or more demanding environments, 316L can be considered. The selection should be based on the actual project conditions.
Final Considerations
Water ripple stainless steel sheets are not simply decorative panels. The final result depends on several measurable specifications, including material grade, 0.6–2.0 mm thickness range, sheet width, length, ripple pattern, color and surface finish.
For standard architectural applications, SUS304 provides a widely used option. SUS316L can be considered when higher corrosion resistance is required. Available sheet widths of 1000–1500 mm and lengths up to 5500 mm provide flexibility for larger wall and ceiling projects.
The best specification depends on the application.
For a quotation, buyers should provide the required grade, thickness, sheet size, ripple pattern, color, quantity and application. A physical sample should also be approved before mass production when color, texture and surface consistency are critical to the project.
For more information about Water Ripple Stainless Steel Sheets, specifications, samples and custom production, visit the ColorMetal product page or contact the manufacturer directly.
–
